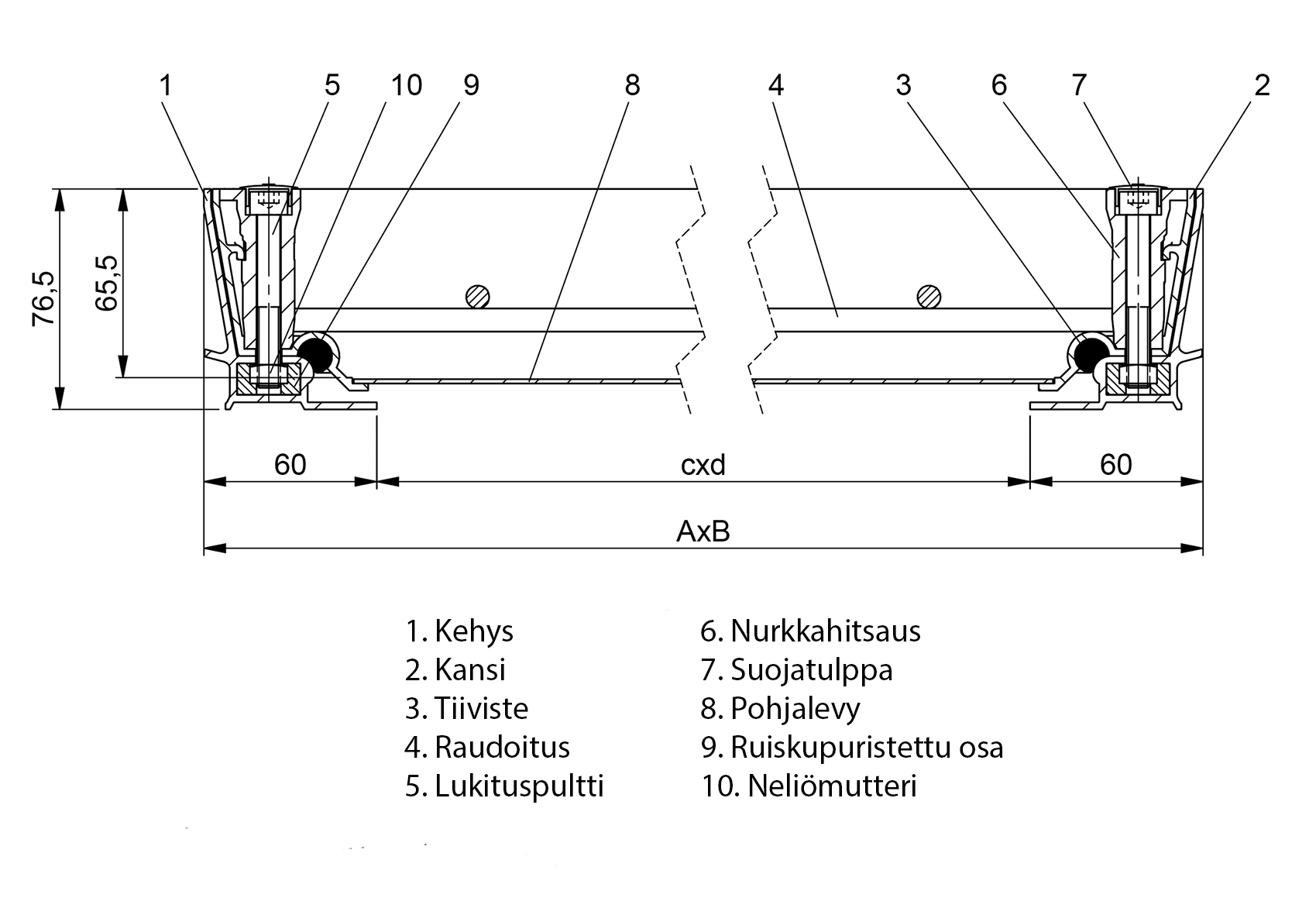

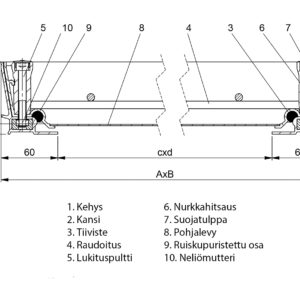

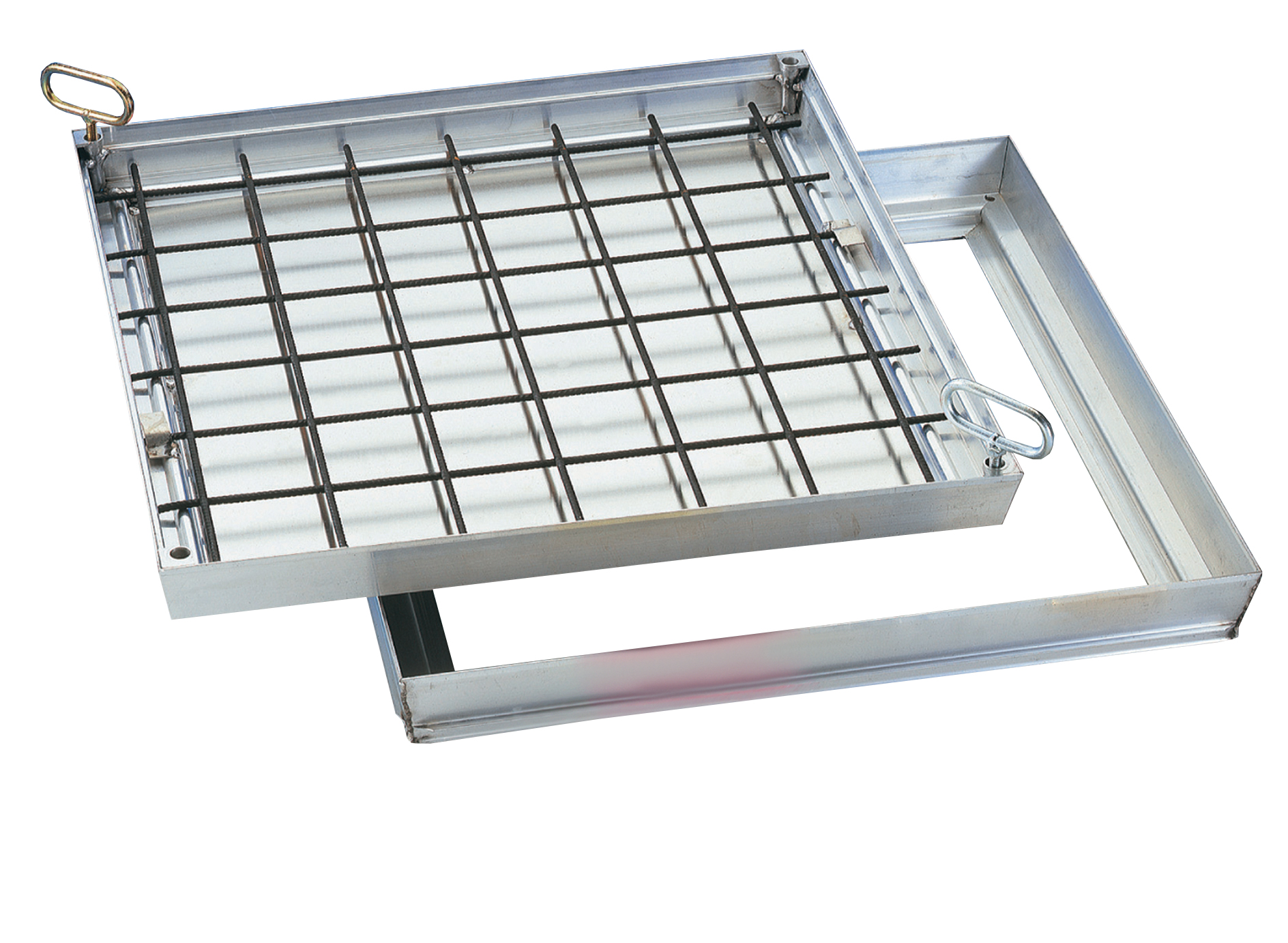

Access cover made of aluminium. Frame is made of extruded aluminium, the cover is made of aluminium plate. Gas and water-proof access cover which is manufactured with accurate dimensions. The special seal withstands chemicals well. Thanks to its small corners and accurately dimensioned edge structure, the access cover is almost unnoticeable in the flooring after its installation. Ideal for locations where extremely high requirements are set for the appearance of the access cover´s visible edge. The reinforcement in the access cover improves structural load endurance.Suitable for floors located indoors when high requirements are set for the appearance of the access cover´s visible edges or when the floor must be ground afterwards (e.g. parquet floors). Load endurance 125kN. Fire-resistance rating EI60
FLOOR HATCH ALUMINIUM 800X600MM EI60 CASTABLE
Access cover, aluminium. Gas- and waterproof. For in- and outdoor use. Load endurace 125kN. EI60
Description
Additional information
Waterproof | Yes |
---|---|
Locking type | Pultti |
Gas proof | Yes |
Manufacturers website | https://www.hago.at/en/products/details/bva-aluminium.html |
Fire protection | EI60 |
Width A x B | 920 x 720 mm |
Width C x D | 800 x 600 mm |
Load capacity | 125 kN |
Weight | 12 kg |
Height | 76 mm |
