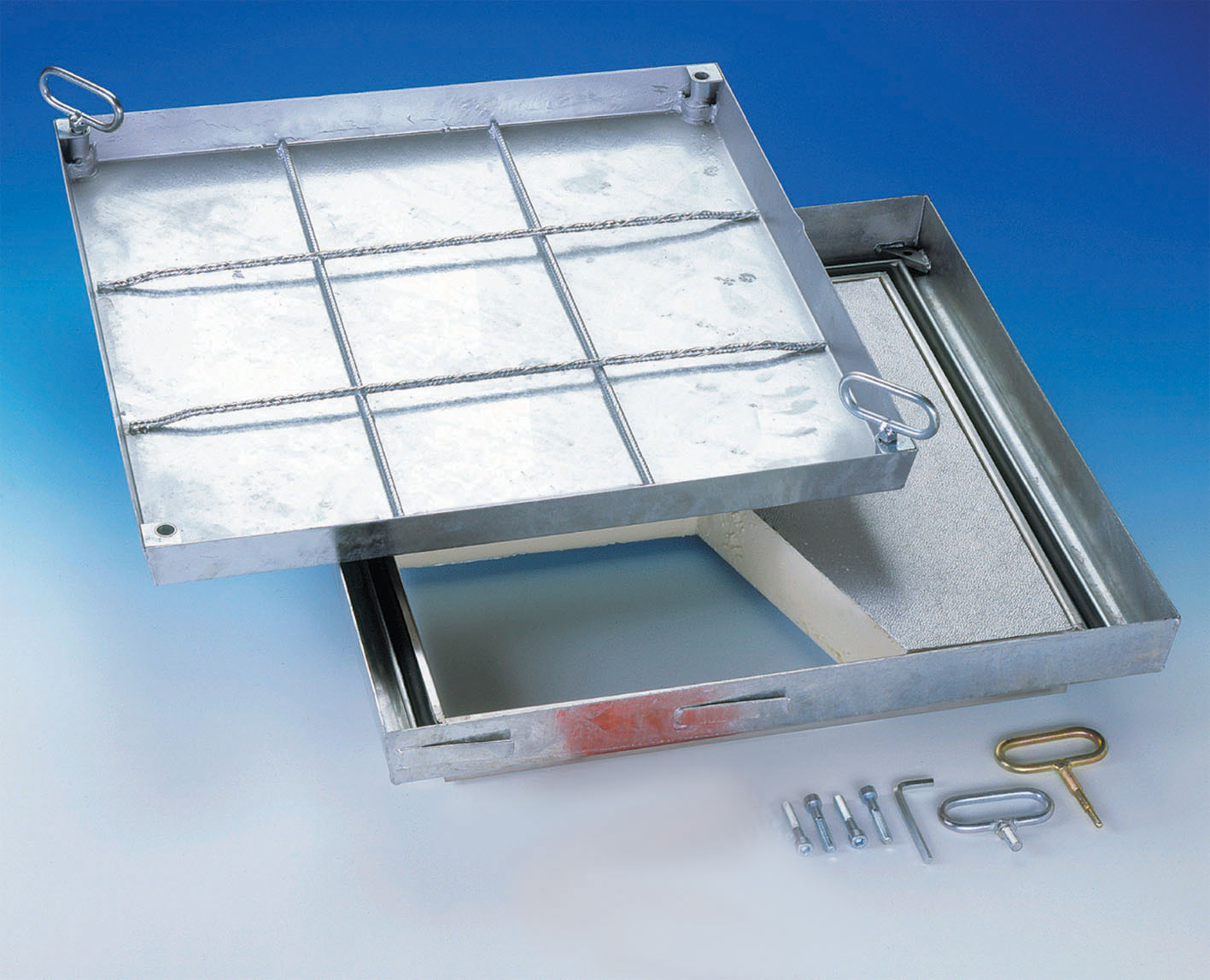

Access cover made of galvanized steel. The structure is galvanised after welding. The cover has a detachable aluminium-coated thermal insulation plate. Cover is gas- and Waterproof. The special seal withstands chemicals well. Conical design and lifting key makes it easier to open the cover. Thanks to the small angles and accurately dimensioned edge structure, the cover is almost unnoticeable in the ground after installation. The door is fitted with internal reinforcing that improves its load endurance. Suitable for projects,which demands gas- and waterproof access doors and the cover is required to have special thermal insulation capacity in indoor and outdoor use. Load endurace 125kN. Fire-resistance rating EI30
FLOOR HATCH GALVANIZED STEEL 600X400MM THERMAL INSULATION, CASTABLE
Access cover, galvanized steel. Equipped with thermal insulation panel. Gas- and waterproof. For in- and outdoor use. Load endurance 125kN. EI30
Description
Additional information
| Waterproof | Yes |
|---|---|
| Thermal insulation | Yes |
| Locking type | Pultti |
| Gas proof | Yes |
| Manufacturers website | https://www.hago.at/en/products/details/bv-thermo-steel-galvanised-bve-thermo-stainless-steel.html |
| Height | 75 mm |
| Width A x B | 735 x 535 mm |
| Width C x D | 600 x 400 mm |
| Load capacity | 125 kN |
| Fire protection | EI30 |
| Weight | 19 kg |
