FLOOR HATCH GALVANIZED STEEL 600X600MM MAX LOAD 250KN, CASTABLE

BVS-250 66 ,

Access cover, galvanized steel. For heavy loads. Gas- and waterproof. For in- and outdoor use. Load endurance 250kN. EI30

Description

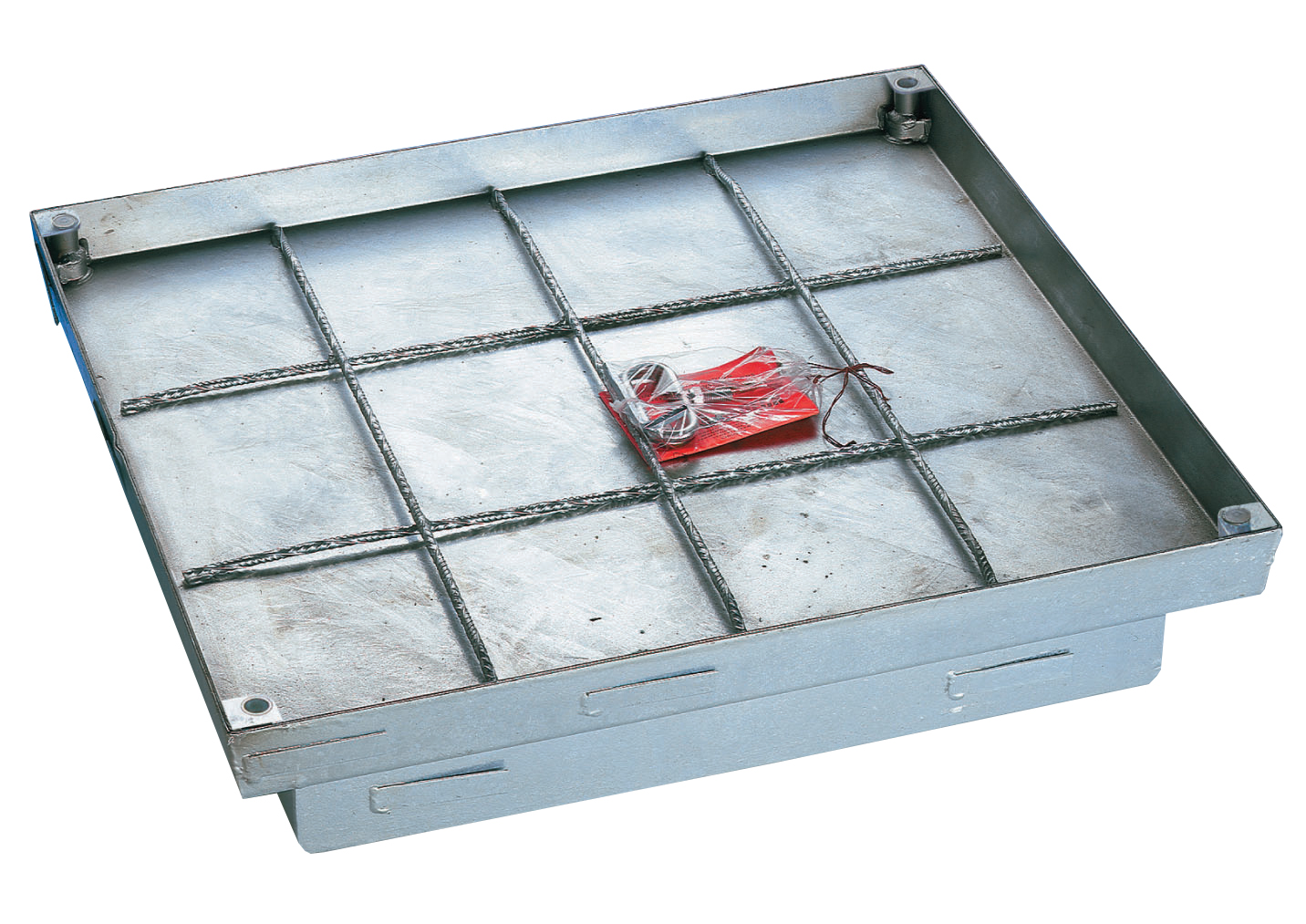

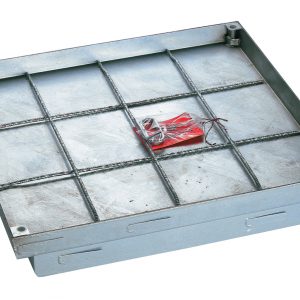

Access cover made of galvanized steel. The structure is galvanised after welding. The cover has reinforcing I-beams that enable heavy use. Cover is gas- and Waterproof. The special seal withstands chemicals well. Conical design and lifting key makes it easier to open the cover. Thanks to the small angles and accurately dimensioned edge structure, the cover is almost unnoticeable in the ground after installation. The door is fitted with internal reinforcing that improves it´s load endurance. Suitable for projects in warehouses and loading docks where forklifts are used. Load endurace 250kN.

Additional information
Waterproof

Yes

Height

75 mm

Locking type

Pultti

Gas proof

Yes

Manufacturers website

https://www.hago.at/en/products/details/bvs-250-steel-galvanised.html

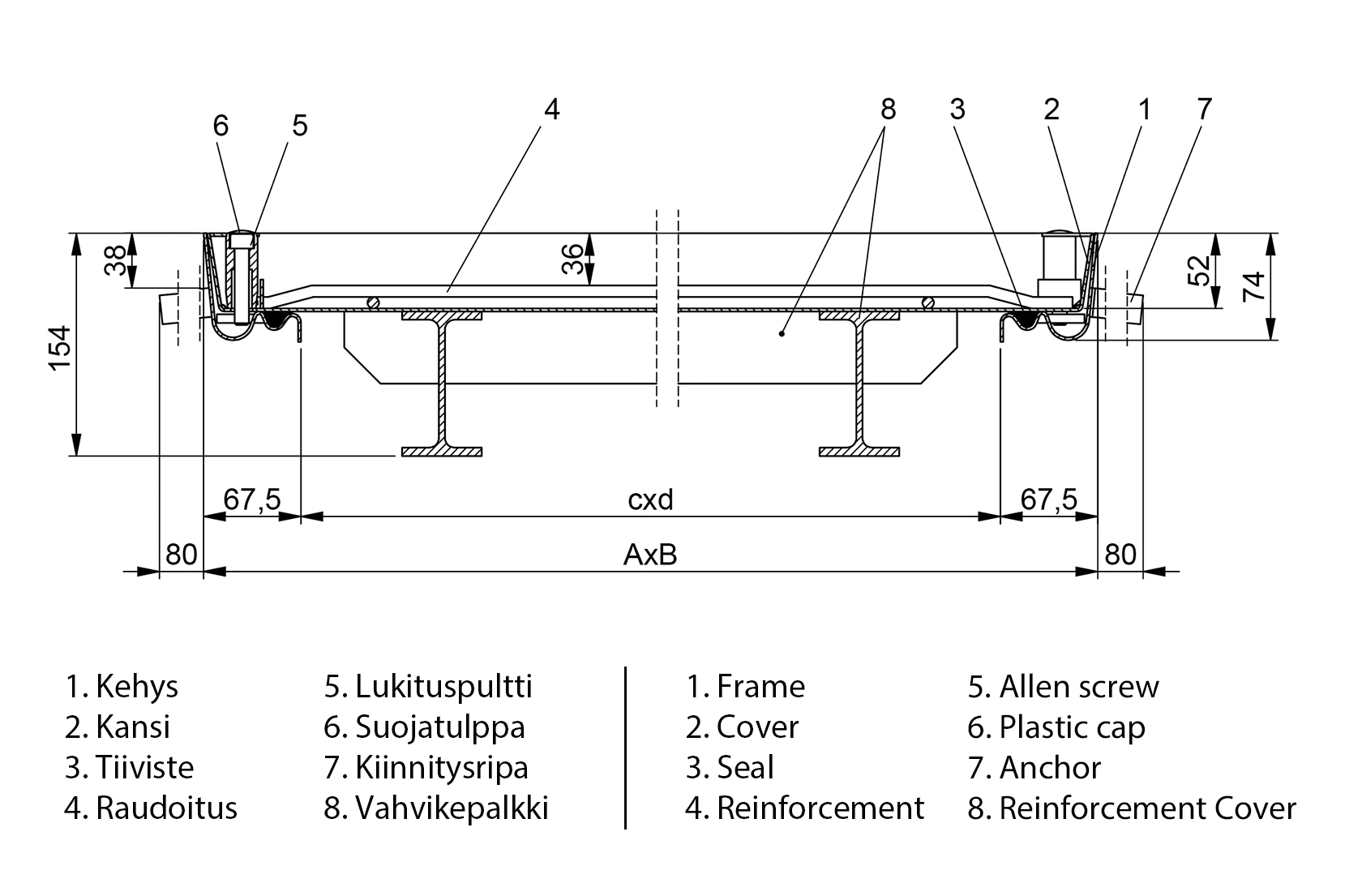

Width A x B

735 x 735 mm

Width C x D

600 x 600 mm

Load capacity

250 kN

Weight

31 kg
