FLOOR HATCH STAINLESS STEEL 800X600MM EI30 CASTABLE

BVE86 ,

Access cover,stainless steel AISI304.Gas- and waterproof.For in- and outdoor use.Load endurace 125kN.EI30

Description

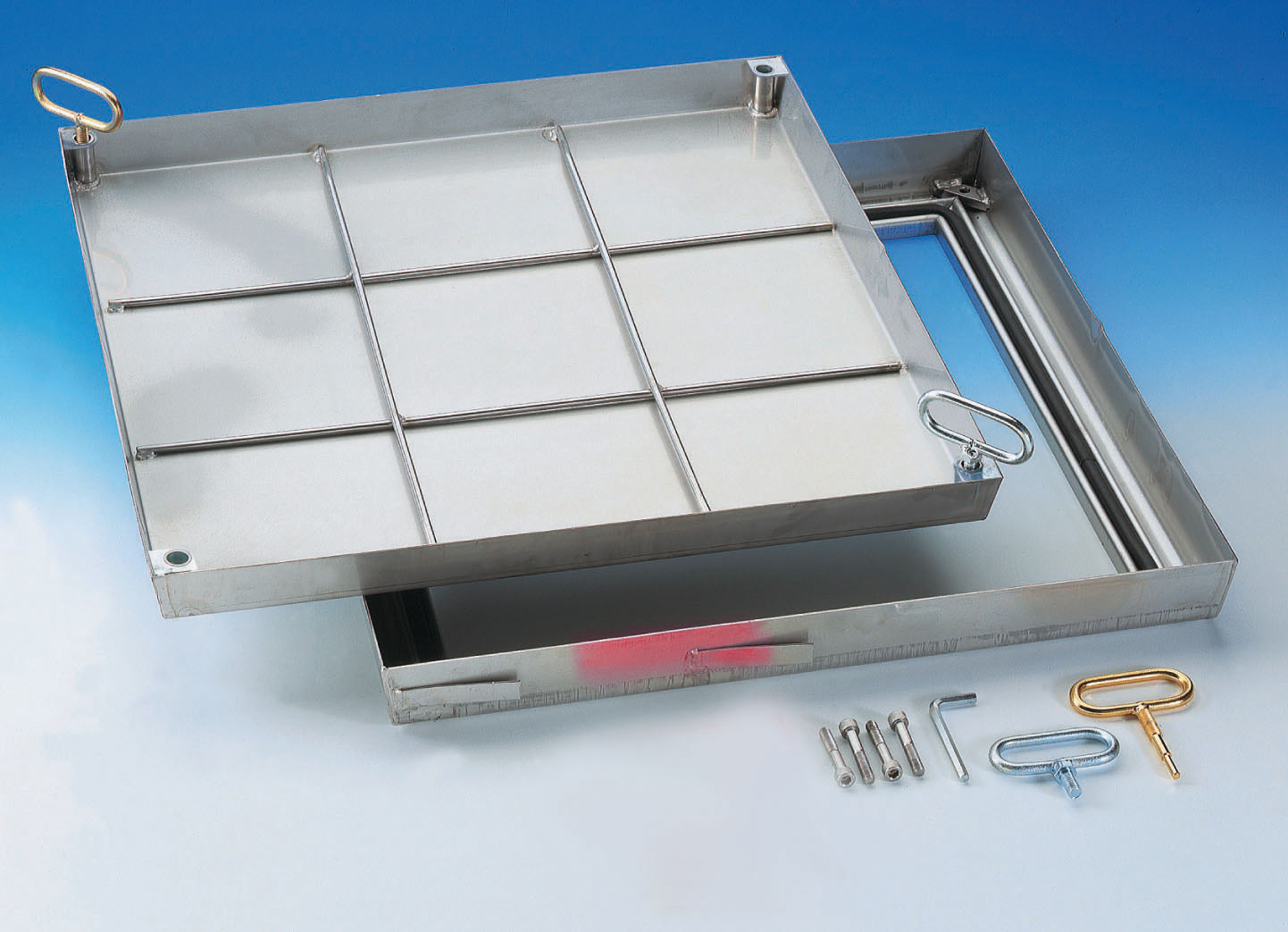

Access cover ,made of 2mm thick stainless steel ,grade 304.Whole structure is passivated after welding.Gas and water-proof access cover which is manufactured with accurate dimensions.The special seal withstands chemicals well.The conical design and lifting key make it easier to open the cover. Thanks to the small angles and accurately dimensioned edge structure, the cover is almost unnoticeable after installation.The cover has reinforcing that improves its load endurance.For projects which are demanding access covers with high corrosion resistance or better hygiene, such as foodprocessing premises or hospitals.Load endurance 125kN.Fire-resistance rating EI30

Additional information
Load capacity

125 kN

Width C x D

800 x 600 mm

Width A x B

935 x 735 mm

Fire protection

EI30

Manufacturers website

https://www.hago.at/en/products/details/bve-stainless-steel.html

Locking type

Pultti

Waterproof

Yes

Gas proof

Yes

Weight

24 kg

Height

75 mm
