FLOOR HATCH WITH AIR VENT 735X735MM CASTABLE

BR-D88 ,

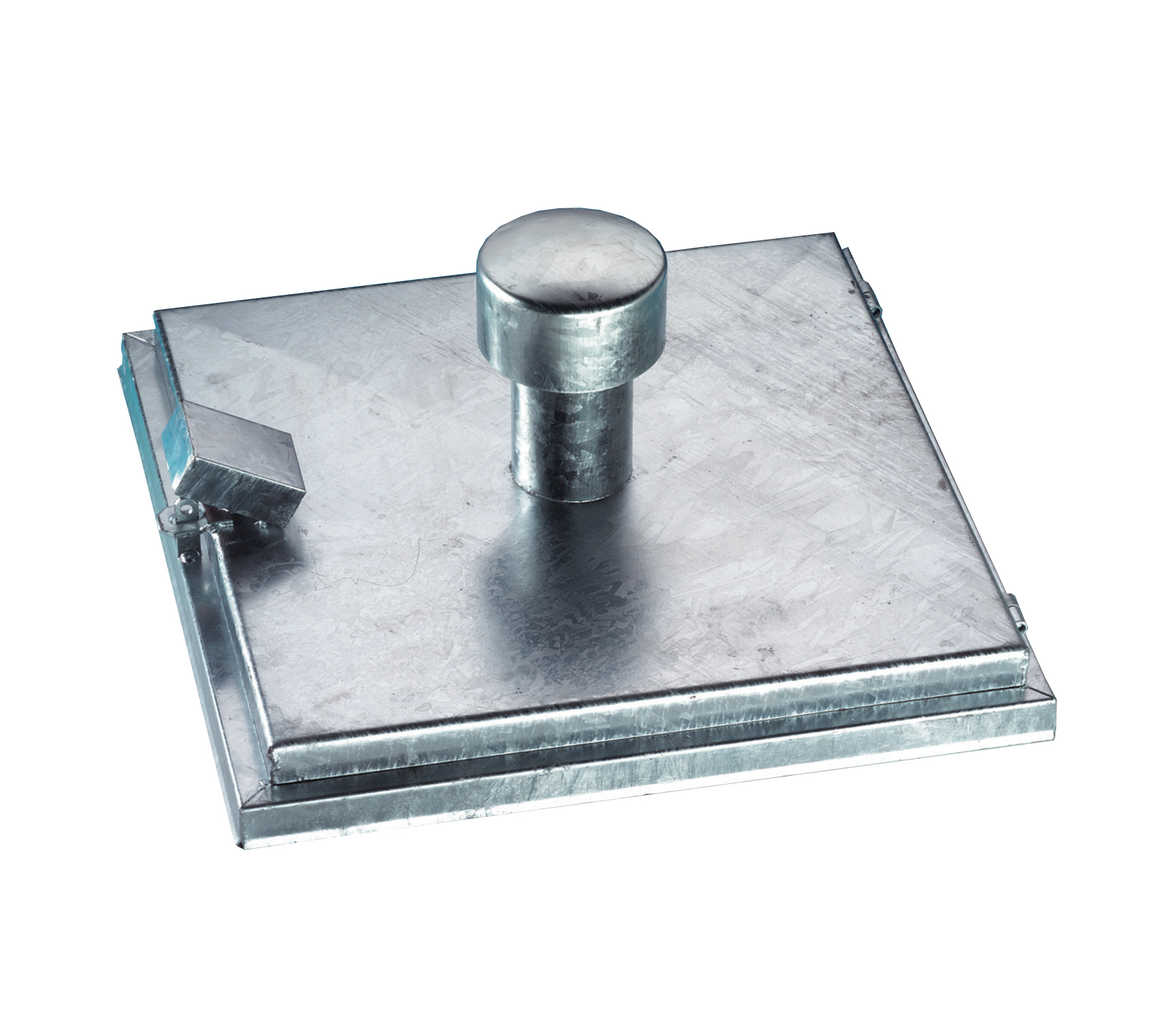

Access cover, galvanized steel. Equipped with ventilation tube. Load endurance 15kN.

Description

Access cover,galvanized steel.Accurately dimensioned access cover with a ventilation tube. Hinged model that can be locked with a padlock.(Padlock not included) The ventilation tube is 100mm diameter and has an insect net in it. The cover can be completely removed when open. If necessary, supplied fitted with a seal.Suitable for example at wellcovers, tanks and water plants.Load endurance 15kN.

Additional information
Waterproof

Yes

Load capacity

15 kN

Width C x D

795 x 795 mm

Width A x B

865 x 865 mm

Height

260 mm

Manufacturers website

https://www.hago.at/en/products/details/br-d-steel.html

Gas proof

Yes

Locking type

Riippulukko

Fire protection

EI30

Weight

19 kg
